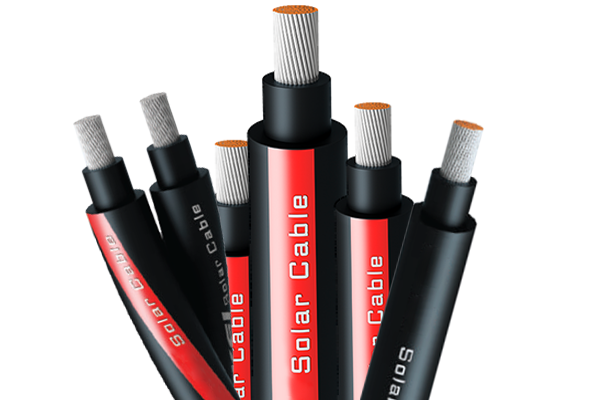

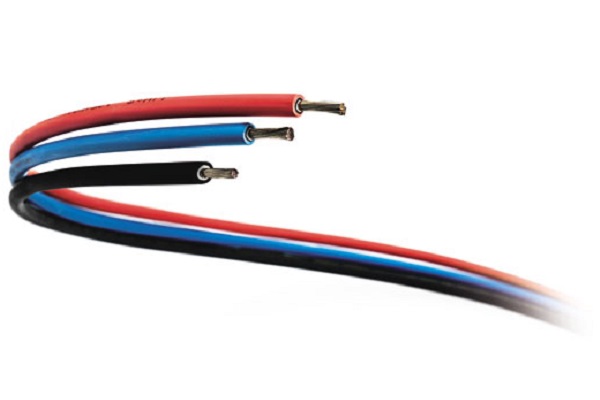

Thinner wall solar cables with TUV approved

Thinner wall solar cables with TUV approved

Application
Flexible cable (wire) suitable for PV solar DC current systems. The max allowable DC voltage 1.8KV (Conductor to conductor, system without earth). Used security level II location.

Standard
Fire-resistant Performance: IEC 60332-1

Executive Standard: TUV PV1-F  2 PfG 1169/08.2007

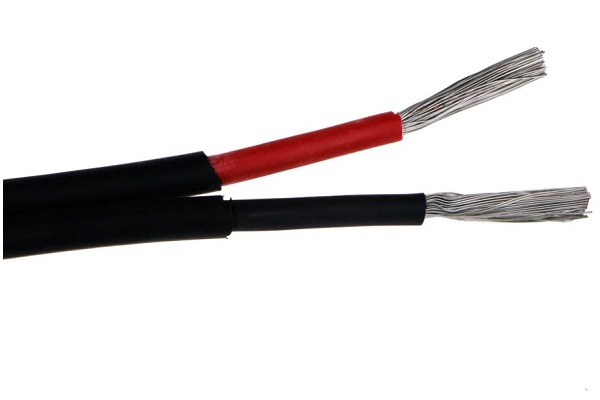

Construction
Conductor: Tinned copper, electrical property & Structure in accordance with EN60228 Class 5.
Insulation: LSZH electron-beam cross-linked Polyolefin copolymer ROHS material, prior color black or as per customer’s request.
Outer Sheath: LSZH & UV-resistant electron-beam cross-linked Polyolefin copolymer ROHS material, prior color black or as per customer’s request.

Specification
Nominal Voltage: U0/U  0.6/1 KV （AC） /  1/1.8 KV (DC)
Test Voltage: No breakdown at 6.5 KA(AC) 50HZ 5min & 20±5℃ / 15KA (DC)  5min  20±5℃
Temperature Rating: Working Temperature －40℃～＋90℃, Max conductor Temperature 125℃ (continuously 20h), Allowable short circuit temperature 200°C in 5 second
Service Life: Expected life span≥25 years
Bending Radius: Fixed installation＞4D, Occasionally moved＞5D
