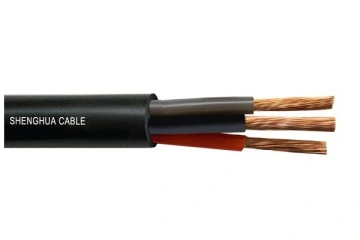

H07Z1Z1-F Low smoke zero halogen polyolefin LSZH cables

Application

• H07Z1Z1-F cable can be used in occasions where there are clear requirements for halogen-free, low-smoke and low-corrosive gas characteristics in the event of a fire. It can be used in household equipment, kitchens and offices, small equipment in low mechanical stress occasions, such as office equipment, radios, desk lamps or floor lamps.




  Construction

  Conductor: bare copper wire stranded conductor, in line with IEC60228 category 5 conductor

  Insulation: special environmentally friendly (cross-linked) halogen-free insulating material

  Sheath: special environmentally friendly (cross-linked) type halogen-free sheath material

  Sheath color can be customized




  Technical Parameter

  Rated voltage: 300/300V

  Test voltage: 2000v-2500V

  Operating temperature: mobile installation -25℃ to +70℃

  Fixed installation

  Minimum bending radius 7.5x cable diameter.
