Armoured STA electrical cables

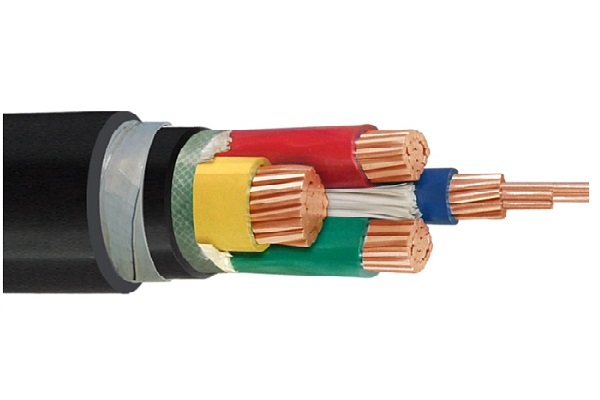

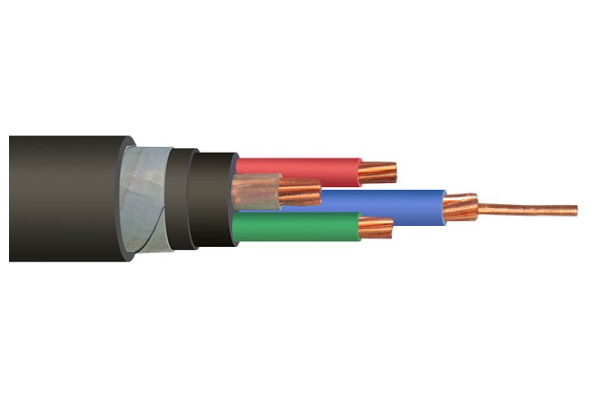

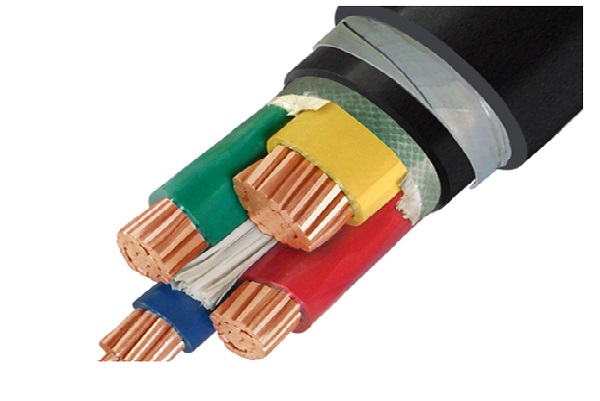

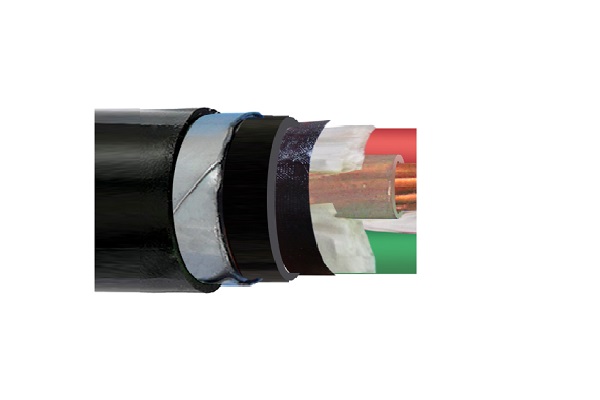

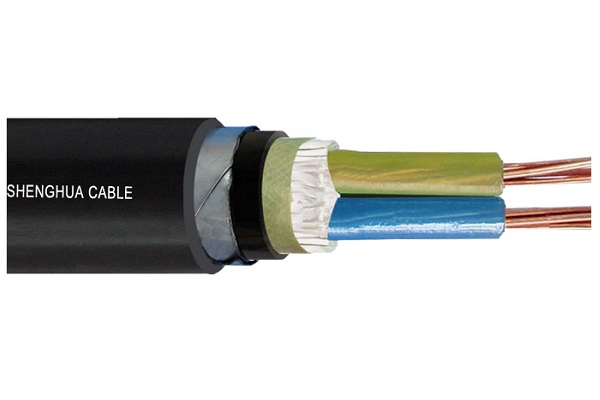

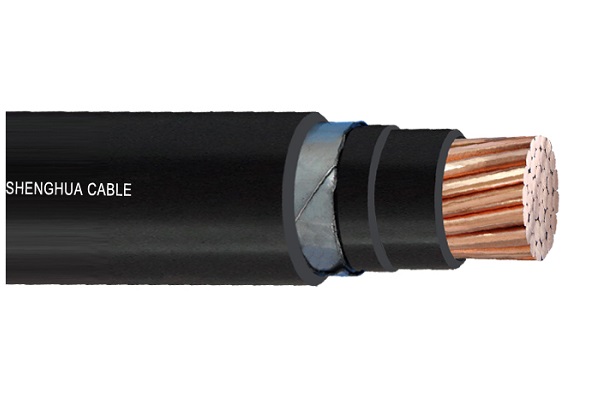

Steel tape armoured STA cable XLPE insulated PVC sheath electrical cables

Steel tape armoured STA cable XLPE insulated PVC sheath electrical cables

Conductor : Compact stranded copper
Insulation : XLPE
Armoring : Stainless steel tape
Rated voltage: 0.6 / 1 kV
Product description: Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.
INQUIRY EMAIL

Construction

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner covering : PVC
Armoring : Stainless steel tape
Sheath : PVC type ST2 to IEC 60502, black

Applications

Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.

Standards

International: IEC 60502, IEC 60228, IEC 60332
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 12 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request
