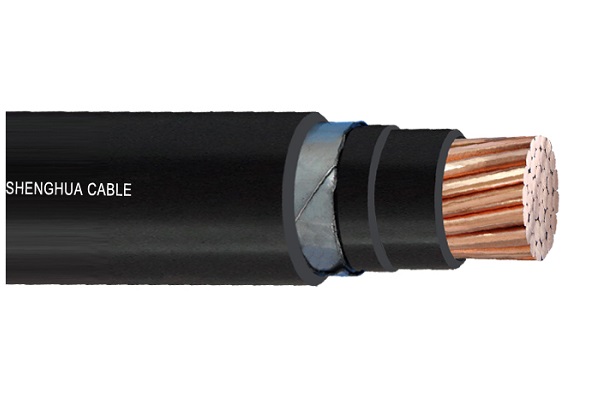

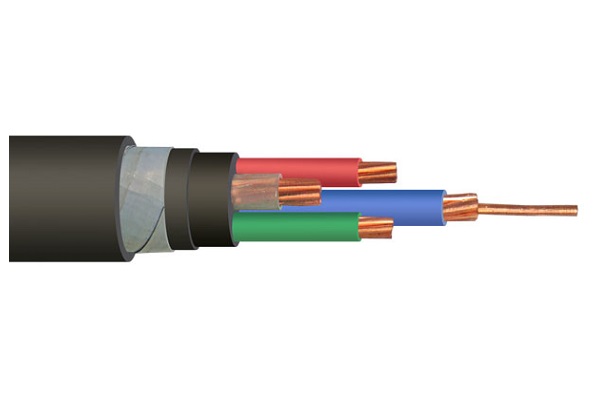

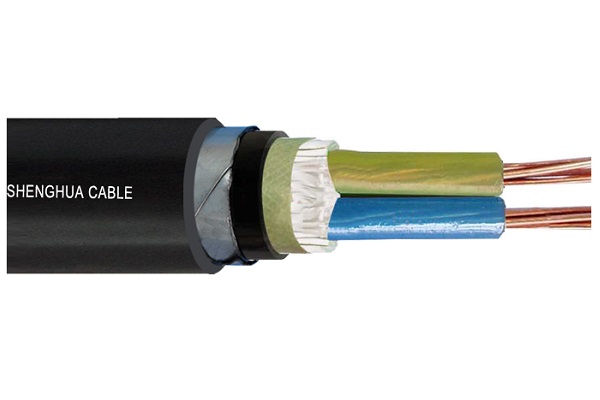

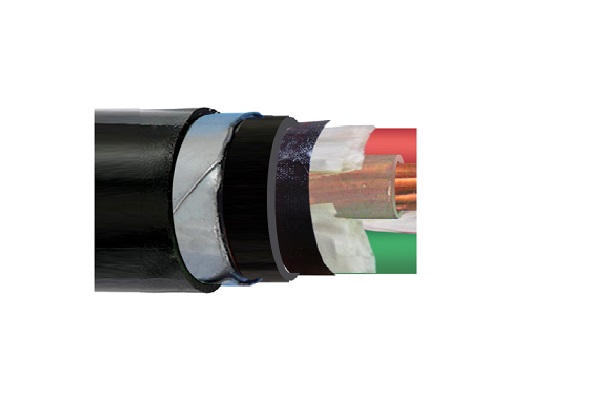

Steel Tape Armoured Cable STA armor cable

Construction

Conductor      : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation      : XLPE(cross-linked polyethylene) rated at 90 OC
Inner covering  : PVC
Armoring       : Stainless steel tape
Sheath         : PVC type ST2 to IEC 60502, black

Standards

International: IEC 60502, IEC 60228, IEC 60332
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp.  0 ℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 12 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request
