Armoured SWA/AWA electrical cables

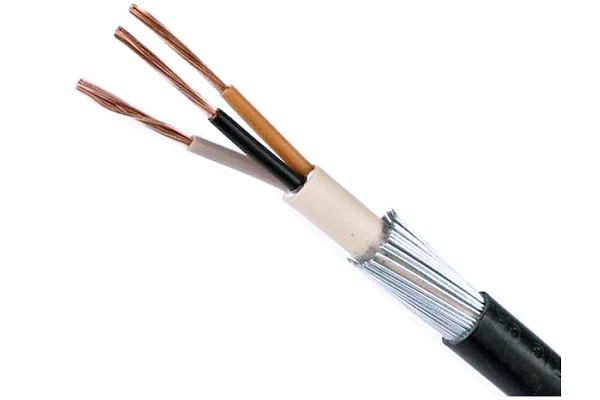

16mm 3 core swa armoured cable

Conductor: copper
Insulation: XLPE/PVC
Sheath : FR-PVC
Armoured: Steel wire armoured
Product description: The purpose of the armor layer is to enhance the mechanical protection such as tensile strength and compressive strength to extend the service life, and also improve the anti-interference performance
INQUIRY EMAIL

16mm 3 core swa armoured cable

Construction

1. Conductor
Stranded copper complying with IEC60228, class 2.
1,5-16 mm 2 circular stranded.
25-400 mm 2 shaped stranded.
2. Insulation
Extruded XLPE
3. Core identification
Brown, black, grey, blue or as required
4. Lay-up and bedding
The cores are laid up in a right hand direction and tape bedded.
5. Armour
A single layer of galvanised steel wires is laid in a left hand
direction.
6. Sheath
Black PVC

Technical data

Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D.
