Instrumentation and signal transmission cables for measurement, control loops and data integrity.
Screened instrumentation cable, stripped back to show the finished build. Pair counts, screen arrangements and sheaths are built to the signal and the application — send us the loop requirement and we will confirm the build.
Family at a glance
Family code
05
Rated voltage
300/500 V
Constructions published
3
Sizes covered
To the cross-sections ordered
Certificates
1 listed on this page
Scope
Voltage range: 300/500 V
This family covers cables that carry information rather than power: analogue measurement loops such as 4–20 mA, thermocouple and resistance-thermometer circuits, discrete status and interlock signals, and low-level data links.
What separates these cables from power cables is screening and balance, not current-carrying capacity. A signal circuit picks up induced noise from any power cable running alongside it, so the screen arrangement — individually screened pairs, an overall screen, or both — and the way that screen is earthed usually decide whether the loop holds its reading. Say which arrangement the project needs rather than leaving it to be inferred.
To quote we need the signal type and level, the number of pairs or cores and whether they are twisted pairs or triads, the screen arrangement and drain-wire convention, the environment the cable runs through (petrochemical, mining, marine, outdoor or high temperature), and the standard you are working to. IEC 60228 fixes the conductor classes, and the cables are manufactured to EN 50288-7; the overall construction is confirmed against the enquiry.
Key characteristics
The published construction in this family is the DJYVP multi-pair screened computer cable — 300/500 V, PE insulation, PVC sheath and a copper braid overall screen — with its full data table below. DJYPVP (individually screened pairs) and DJYVP22 (steel tape armoured) are built on the same base.
Built around the screen arrangement rather than around current-carrying capacity: individual pair screens, an overall screen, or both, with a drain wire where the project asks for one.
Supplied as twisted pairs or triads in whatever pair count the loop requires, with cross-sections set by loop distance and instrument load.
Sheath compounds are chosen for the environment the cable runs through — petrochemical, mining, marine, outdoor or high temperature — rather than for voltage.
The DJY range and the instrument cable range are both manufactured to EN 50288-7. Where the enquiry names the European designation — LiYCY-TP and its screened-pair variants — we map it against the EN 50288-7 construction we build.
Size range at a glance
Type designation
Construction
Rated voltage
Cores
Sizes covered
Sizes listed
DJYJPV22 / DJYJVP22 / DJYJPVP22
CU/XLPE/PVC
As per catalogue
—
identified by model code (e.g. 1×3×0.5, 3×3×0.5, 4×3×0.5, 5×3×0.5)
43
DJYVP / DJYVPR 300/500 V
CU/PE/OS/PVC
300/500 V
—
identified by model code (e.g. 1×2×0.5, 2×2×0.5, 3×2×0.5, 4×2×0.5)
27
DJYJPV / DJYJVP / DJYJPVP
CU/XLPE/PVC
As per catalogue
—
identified by model code (e.g. 1×2×0.5, 1×2×0.5, 1×3×0.5, 1×3×0.5)
203
Each size counted above carries its own dimensional and electrical figures in
the tables further down this page. Intermediate sizes are manufactured to order.
Construction
Each entry is identified three ways: an international description,
a construction code naming the material build-up, and a national
type designation given for cross-reference only. Read the code
string left to right — conductor, insulation, then screening,
armour and sheath where fitted.
One screened-pair construction, opened to show the layer order: insulated cores twisted into pairs, each pair individually screened, under an overall braid and black sheath. Other pair counts and screen arrangements are built to order — send us the application and we will confirm the build.
Product photographs
Photographs of builds from this family. Core count, armouring and sheath follow the specification of each order — the data sheet for your build is issued with the quotation.

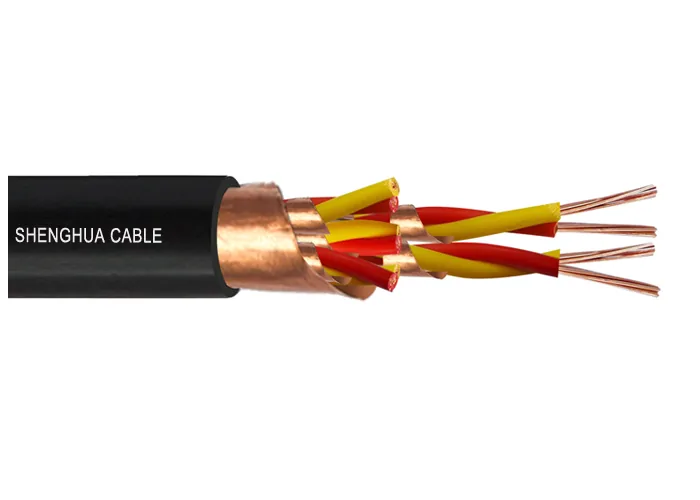

Overall copper braid over the twisted pairs.

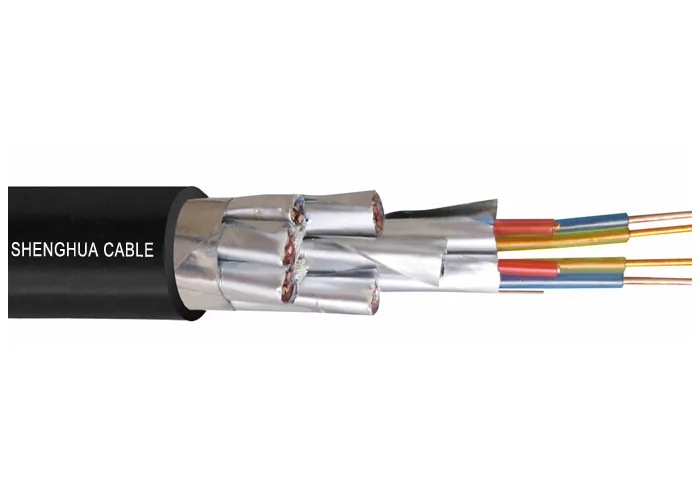

Foil screen over the pair assembly.

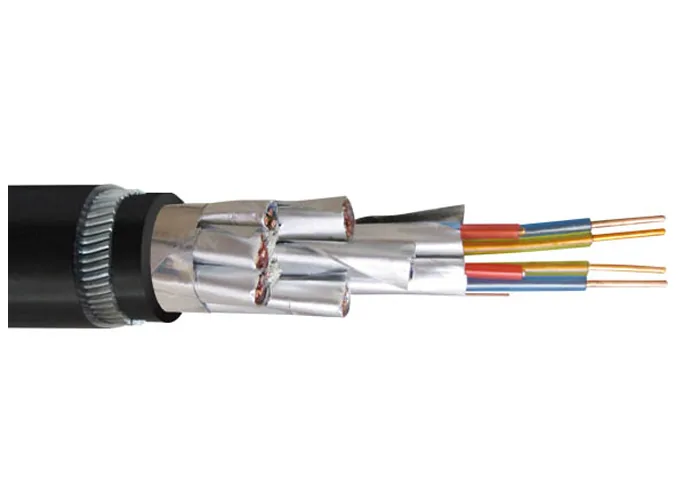

Multi-pair build, cut back through the screen.

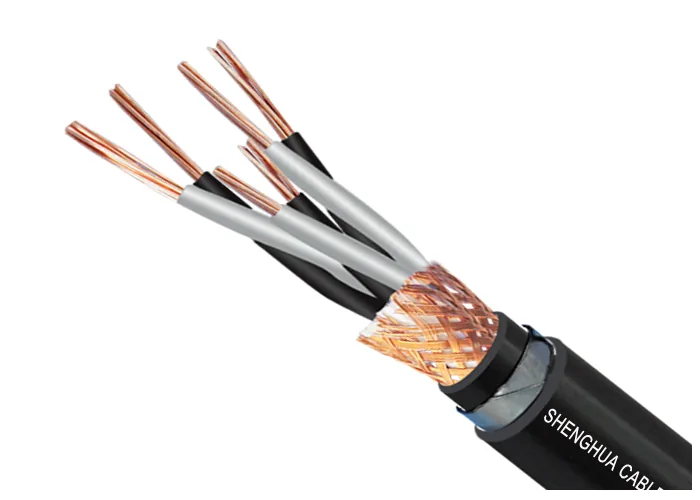

Pairs fanned out — the screen is stripped back with them.

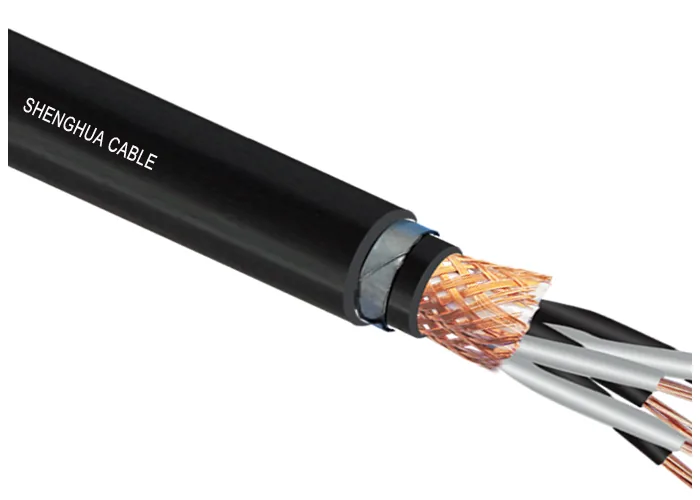

Braid screening at the cut end.

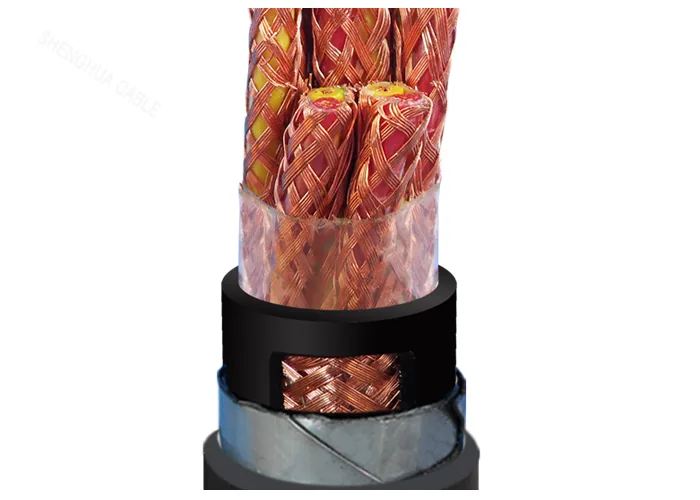

Screen, tape and cores — the layer order at the cut.
Application For analogue/digital signal transmission and computer interconnection in process control systems (DCS/PLC), instrument circuits and electronic equipment, where low external interference is required. Armoured version for direct burial and mechanical protection.
Execution standards
International (IEC)IEC 60228 (conductors)
Technical data — 43 sizes × 5 parameters
Pairs × cores × section
Cat. page
DJYJPV ref. outer dia. (mm)
DJYJVP ref. outer dia. (mm)
DJYJPVP ref. outer dia. (mm)
1×3×0.5
p46
10.8
10.8
3×3×0.5
p46
15.9
15.3
16.4
4×3×0.5
p46
16.9
16.2
17.4
5×3×0.5
p46
18.5
17.4
19.0
7×3×0.5
p46
19.4
18.6
19.9
8×3×0.5
p46
21.4
20.3
21.9
12×3×0.5
p46
24.8
23.4
26.3
14×3×0.5
p46
26.2
24.3
16×3×0.5
p46
27.7
25.6
28.2
24×3×0.5
p46
33.6
31.0
34.4
3×3×0.75
p46
16.4
15.8
16.9
4×3×0.75
p46
17.5
5×3×0.75
p46
19.0
17.6
19.5
(6)7×3×0.75
p46
20.6
19.7
21.1
12×3×0.75
p46
25.8
24.5
26.3
14×3×0.75
p46
27.3
25.4
27.8
16×3×0.75
p46
29.4
27.2
29.9
24×3×0.75
p46
35.0
32.6
36.0
1×3×1
p46
11.6
11.6
2×3×1
p46
16.1
15.7
16.6
8×3×1
p46
23.5
22.4
24.0
10×3×1
p46
26.7
25.0
27.2
14×3×1
p46
29.5
27.4
30.0
24×3×1
p46
37.7
35.0
38.2
1×3×1.5
p46
12.3
12.3
2×3×1.5
p46
17.0
16.6
17.5
3×3×1.5
p46
18.9
18.3
19.4
5×3×1.5
p46
21.2
20.4
21.7
7×3×1.5
p46
23.2
22.2
23.7
10×3×1.5
p46
29.1
27.2
29.6
12×3×1.5
p46
30.3
28.3
14×3×1.5
p46
31.5
30.0
32.0
(18)19×3×1.5
p46
36.6
34.3
37.1
24×3×1.5
p46
40.9
38.2
2×3×2.5
p46
19.9
19.5
20.4
3×3×2.5
p46
21.4
20.8
21.9
7×3×2.5
p46
26.9
25.6
27.4
8×3×2.5
p46
29.7
28.1
30.2
10×3×2.5
p46
33.4
32.1
34.3
12×3×2.5
p46
35.2
33.5
36.2
14×3×2.5
p46
37.2
16×3×2.5
p46
39.8
37.7
40.3
(18)19×3×2.5
p46
42.9
41.4
43.4
Source: Shenghua cable catalogue — figures transcribed from the printed catalogue.
International description
Computer Cable (Multi-pair Screened)
Individual & overall screen (Al/PET tape + copper braid)300/500 V
Construction
CU/PE/OS/PVC
also supplied as DJYVPR, DJYPV, DJYPVR, DJYPVP, DJYPVPR
Designation
DJYVP / DJYVPR 300/500 Vtype code as written on the selection sheet, for cross-reference only
Ordering codes by region
Cross-reference only — see the note below the list.
China GB
DJYVP / DJYVPR 300/500 V
as written on the selection sheet: DJYVP / DJYVPR 300/500 V
Russia / CIS ГОСТ 1508-78
КПВГЭ
Conductor
Stranded copper conductor, Class 2 as per IEC 60228
Insulation
PE (polyethylene) for computer cable cores
Pair twisting
cores twisted into pairs (2-core groups)
Individual screen (where applicable)
Al/PET composite tape
Overall screen
copper wire braid or Al/PET tape
Sheath
PVC type ST1, black
Application For fixed installation in ducts, conduits, trays; used in computer systems, instrumentation, electronic equipment, control rooms.
Execution standards
International (IEC)IEC 60228
Europe (EN · DIN VDE · BS)EN 50288-7
China (GB · JB · MT)GB/T 9330 structure
Technical data — 27 sizes × 7 parameters
Pairs × cores × conductor dia (pair×core×mm)
DJYVP / DJYPV ref. outer dia. (mm)
DJYVPR / DJYPVR ref. outer dia. (mm)
DJYPVP ref. outer dia. (mm)
DJYPVPR ref. outer dia. (mm)
DJYP2VP2 ref. outer dia. (mm)
DJYP2VP2R ref. outer dia. (mm)
1×2×0.5
7.7
7.9
7.7
7.9
8.1
8.2
2×2×0.5
10.3
10.4
10.4
10.5
11.0
11.1
3×2×0.5
11.5
11.6
11.6
11.7
12.4
12.4
4×2×0.5
12.6
12.8
12.8
12.9
13.6
13.7
5×2×0.5
13.5
13.7
13.8
13.9
14.7
14.7
7×2×0.5
14.6
14.8
15.1
15.2
16.0
16.0
8×2×0.5
15.7
16.0
16.2
16.4
17.1
17.2
10×2×0.5
16.7
17.0
17.4
17.6
18.5
18.6
12×2×0.5
18.0
18.3
18.7
19.0
20.1
20.2
14×2×0.5
19.0
19.4
19.8
20.1
21.3
21.4
16×2×0.5
20.2
20.5
21.0
21.3
22.6
22.7
19×2×0.5
21.6
22.0
22.4
22.7
24.1
24.3
24×2×0.5
25.3
25.8
26.3
26.6
28.2
28.4
1×3×0.75
8.0
8.2
8.2
8.4
8.5
8.6
2×3×0.75
11.3
11.4
11.5
11.6
12.2
12.3
4×3×0.75
14.0
14.2
14.3
14.5
15.3
15.4
7×3×0.75
16.7
16.9
17.3
17.5
18.4
18.6
10×3×0.75
19.3
19.7
20.2
20.5
21.5
21.7
14×3×0.75
22.0
22.4
22.9
23.3
24.6
24.8
19×3×0.75
24.8
25.3
25.9
26.4
27.8
28.0
1×2×1.0
8.4
8.6
8.5
8.7
8.8
9.0
2×2×1.0
11.8
12.0
12.0
12.2
12.7
12.8
4×2×1.0
14.6
14.9
15.0
15.2
15.9
16.0
7×2×1.0
17.6
17.9
18.2
18.5
19.4
19.5
10×2×1.0
20.4
20.8
21.3
21.6
22.7
22.9
14×2×1.0
23.1
23.6
24.1
24.4
25.7
25.9
19×2×1.0
26.2
26.8
27.4
27.8
29.2
29.4
Source: Shenghua cable catalogue (pp. 24, 25) — figures transcribed from the printed catalogue.
Application For analogue/digital signal transmission and computer interconnection in process control systems (DCS/PLC), instrument circuits and electronic equipment, where low external interference is required.
Execution standards
International (IEC)IEC 60228 (conductors)
Technical data — 203 sizes × 5 parameters
Pairs × cores × section
Cat. page
DJYJPV ref. outer dia. (mm)
DJYJVP ref. outer dia. (mm)
DJYJPVP ref. outer dia. (mm)
1×2×0.5
p42
7.0
7.0
1×2×0.5
p43
10.4
10.4
1×3×0.5
p44
6.8
6.8
1×3×0.5
p45
7.3
7.3
2×2×0.5
p42
11.0
10.5
11.5
2×2×0.5
p43
13.7
13.3
14.2
2×3×0.5
p44
10.9
10.5
11.4
2×3×0.5
p45
11.3
10.9
11.8
3×2×0.5
p43
14.6
13.6
15.1
3×3×0.5
p44
12.3
11.3
12.8
3×3×0.5
p45
12.7
13.2
4×2×0.5
p43
14.4
4×3×0.5
p44
13.2
12.6
13.7
4×3×0.5
p45
13.7
13.0
14.2
5×2×0.5
p43
16.4
15.2
16.9
5×3×0.5
p44
14.2
13.4
14.7
5×3×0.5
p45
14.7
13.9
15.2
7×2×0.5
p43
17.9
17.1
18.4
7×3×0.5
p44
15.1
14.2
15.6
8×2×0.5
p42
16.0
15.0
16.5
8×2×0.5
p43
15.5
15.5
17.5
8×3×0.5
p44
17.6
15.9
18.1
8×3×0.5
p45
18.2
16.5
18.7
10×3×0.5
p44
19.9
18.6
10×3×0.5
p45
20.6
19.3
12×3×0.5
p44
20.9
19.5
21.4
12×3×0.5
p45
21.6
20.2
22.4
14×2×0.5
p42
21.5
19.7
22.0
14×2×0.5
p43
22.9
21.5
23.4
14×3×0.5
p44
21.8
20.3
16×2×0.5
p42
22.6
21.1
23.4
16×3×0.5
p44
23.2
21.6
23.7
16×3×0.5
p45
24.4
22.4
24.6
(18)19×2×0.5
p43
23.8
21.0
24.5
(18)19×3×0.5
p44
25.1
23.2
25.6
(18)19×3×0.5
p45
26.0
24.2
26.5
24×2×0.5
p43
27.6
24×2×0.5
p43
29.7
27.1
30.2
1×2×0.75
p42
7.7
7.7
1×2×0.75
p43
10.8
10.8
2×2×0.75
p42
11.9
11.3
12.8
2×2×0.75
p43
14.4
14.0
14.9
2×3×0.75
p44
11.9
11.5
12.8
2×3×0.75
p45
13.2
12.8
3×2×0.75
p42
13.4
12.9
13.9
3×2×0.75
p43
15.5
15.0
16.0
3×3×0.75
p44
13.4
12.8
13.9
3×3×0.75
p45
14.4
13.9
14.9
4×2×0.75
p42
13.5
13.0
14.0
4×3×0.75
p44
14.5
4×3×0.75
p45
15.6
5×2×0.75
p42
15.5
14.9
16.0
5×3×0.75
p44
15.4
14.6
15.9
7×2×0.75
p42
15.5
14.5
16.0
7×2×0.75
p43
18.6
17.2
19.1
7×3×0.75
p44
17.0
16.1
17.5
7×3×0.75
p45
19.1
17.5
19.6
8×2×0.75
p42
17.0
16.0
18.0
8×2×0.75
p43
19.0
18.1
19.5
8×2×0.75
p44
19.6
8×3×0.75
p44
19.2
17.6
19.7
10×2×0.75
p43
22.6
21.5
23.1
10×3×0.75
p44
21.8
20.6
22.5
10×3×0.75
p45
23.6
22.3
24.1
12×2×0.75
p42
22.4
21.1
22.9
12×3×0.75
p44
22.8
21.5
23.3
12×3×0.75
p45
24.8
23.3
25.3
14×2×0.75
p43
24.5
23.3
16×3×0.75
p44
25.4
23.8
25.9
16×3×0.75
p45
27.6
26.0
28.1
18×2×0.75
p42
23.1
(18)19×2×0.75
p42
25.1
23.4
25.6
(18)19×3×0.75
p44
27.5
25.7
24×2×0.75
p42
28.1
26.1
29.2
24×2×0.75
p43
28.0
31.7
24×2×0.75
p43
32.1
31.0
33.1
24×3×0.75
p45
31.8
44×2×0.75
p42
1×2×1
p42
8.2
8.2
1×2×1
p43
11.3
11.3
1×3×1
p44
8.1
8.1
1×3×1
p45
8.6
8.6
2×2×1
p42
13.0
12.2
13.5
2×2×1
p43
15.1
14.5
15.6
2×3×1
p44
13.1
12.7
13.6
2×3×1
p45
14.0
13.5
14.5
3×2×1
p42
14.2
13.7
14.7
3×2×1
p43
16.3
15.8
16.8
3×3×1
p44
14.3
13.6
14.8
4×2×1
p42
15.5
14.9
16.0
4×2×1
p43
17.4
16.9
18.0
4×3×1
p44
15.5
14.7
16.0
4×3×1
p45
16.5
15.9
17.0
5×2×1
p43
16.5
15.9
17.0
5×2×1
p43
19.0
17.6
19.5
5×3×1
p44
16.4
15.6
16.9
7×2×1
p42
16.2
15.2
17.0
7×2×1
p43
17.1
7×2×1
p43
19.6
18.8
20.1
7×3×1
p45
20.2
19.3
20.7
8×2×1
p42
18.3
17.2
19.2
8×2×1
p43
20.2
19.3
20.7
8×2×1
p44
21.7
20.8
22.2
8×3×1
p44
20.5
19.4
21.0
8×3×1
p45
22.0
21.0
22.5
10×2×1
p42
22.6
21.4
23.1
10×2×1
p43
23.5
22.8
24.4
10×3×1
p44
23.3
22.0
12×2×1
p43
25.0
23.8
25.5
12×3×1
p44
24.4
23.0
14×2×1
p42
25.0
23.6
14×3×1
p44
25.5
24.0
26.0
16×2×1
p42
24.7
23.2
25.2
16×2×1
p42
26.7
25.2
27.2
16×2×1
p43
28.1
26.2
29.2
16×3×1
p45
29.9
(18)19×2×1
p43
30.9
29.2
31.4
(18)19×3×1
p44
30.0
27.6
30.5
(18)19×3×1
p45
24×2×1
p43
30.0
33.7
24×2×1
p43
32.1
24×3×1
p44
33.4
31.2
34.3
24×3×1
p45
33.0
1×2×1.5
p42
9.0
9.0
1×2×1.5
p43
11.8
11.8
1×3×1.5
p44
8.8
8.3
2×2×1.5
p42
14.1
13.7
14.6
2×2×1.5
p43
15.8
15.5
16.3
2×3×1.5
p44
14.0
13.6
14.5
3×2×1.5
p42
15.4
14.9
15.9
3×2×1.5
p43
17.1
16.6
17.6
3×3×1.5
p44
15.3
14.7
15.8
3×3×1.5
p45
16.7
16.2
17.2
4×2×1.5
p42
18.8
4×2×1.5
p42
16.8
16.2
4×3×1.5
p44
16.6
15.9
17.1
5×2×1.5
p42
16.3
15.6
16.8
5×2×1.5
p43
18.5
17.3
19.0
5×3×1.5
p44
18.5
16.8
19.0
5×3×1.5
p45
19.7
19.2
20.4
7×2×1.5
p42
18.2
19.0
7×2×1.5
p43
20.6
19.8
21.1
7×3×1.5
p44
20.2
19.2
20.7
8×2×1.5
p42
21.9
21.0
22.4
8×3×1.5
p44
22.0
21.0
8×3×1.5
p45
24.2
23.2
10×3×1.5
p44
25.1
23.8
25.6
10×3×1.5
p45
27.5
26.3
28.0
12×2×1.5
p42
25.9
12×2×1.5
p43
26.0
25.2
12×3×1.5
p44
26.3
24.9
26.8
14×2×1.5
p43
26.7
14×3×1.5
p45
30.9
28.0
31.4
16×2×1.5
p42
26.3
24.8
26.8
16×2×1.5
p43
30.3
28.2
30.8
16×3×1.5
p44
29.9
27.6
30.4
(18)19×2×1.5
p42
29.2
26.9
29.7
(18)19×2×1.5
p43
31.0
29.0
32.8
(18)19×2×1.5
p43
33.1
30.9
33.6
(18)19×3×1.5
p44
32.3
30.5
32.8
(18)19×3×1.5
p45
31.5
34.5
24×2×1.5
p42
32.7
30.7
33.2
24×2×1.5
p43
37.1
24×3×1.5
p44
36.4
34.3
24×3×1.5
p45
35.5
1×2×2.5
p42
10.2
10.2
1×2×2.5
p43
13.1
13.1
1×3×2.5
p44
10.0
10.0
1×3×2.5
p45
10.5
10.5
2×2×2.5
p42
16.3
15.9
16.8
2×2×2.5
p43
18.6
19.1
2×3×2.5
p44
16.3
15.9
16.8
3×2×2.5
p42
16.5
17.0
3×2×2.5
p43
20.1
19.6
20.6
3×3×2.5
p44
18.4
17.2
18.9
3×3×2.5
p45
19.8
19.3
20.3
4×2×2.5
p42
18.5
4×2×2.5
p42
20.1
19.5
20.6
4×3×2.5
p44
20.0
19.3
20.5
5×2×2.5
p43
22.8
22.1
23.3
5×3×2.5
p44
21.2
20.4
21.7
7×2×2.5
p43
23.6
22.8
24.1
7×3×2.5
p44
23.5
22.6
24.0
7×3×2.5
p45
25.5
24.6
26.0
8×2×2.5
p43
26.5
25.4
27.3
8×3×2.5
p44
25.7
24.7
10×2×2.5
p42
29.2
27.4
29.7
10×3×2.5
p45
12×3×2.5
p45
14×2×2.5
p42
32.3
30.8
32.8
14×2×2.5
p43
32.5
31.7
33.9
14×3×2.5
p45
34.6
16×2×2.5
p42
31.5
30.2
32.2
16×2×2.5
p42
34.9
33.0
35.4
16×2×2.5
p43
35.5
34.5
36.5
16×3×2.5
p45
35.5
(18)19×2×2.5
p43
38.8
38.0
39.7
(18)19×3×2.5
p45
38.5
24×2×2.5
p42
39.1
37.1
40.0
24×2×2.5
p43
41.0
38.5
24×2×2.5
p44
41.6
24×3×2.5
p44
43.2
41.0
43.7
14×3×4
p45
Source: Shenghua cable catalogue — figures transcribed from the printed catalogue.
Type designations by region
Buyers search for a supplier by the designation their own market uses.
The codes listed against each construction above are the designations
this family is ordered under in China; each is given for cross-reference
only, and is published only where a supporting reference exists.
The Russian-market designations below are asked for by name on this family; the structure is confirmed against each enquiry.
China GB
DJYVPDJYPVPDJYVP22EN 50288-7
These are the designations we manufacture to. Reading the code (the letters come from the Chinese designation): DJ = computer / instrument cable, Y = PE insulation, V = PVC sheath, and each P is a screen — DJYPVP has a screen on every pair (first P) plus an overall screen (second P); DJYVP has the overall screen only; the trailing 22 denotes steel tape armour.
How the two systems line up
China (GB) — what we build to
European equivalent
Screen arrangement
When it is chosen

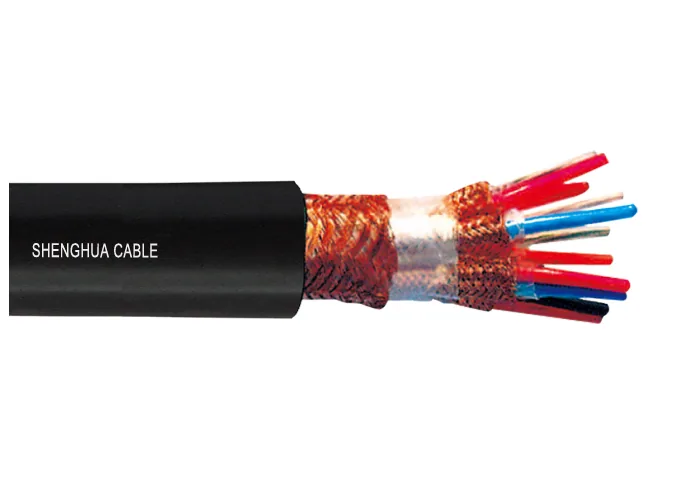

DJYVP
LiYCY-TP
Overall screen over the pair assembly
Twisted pairs under one overall screen.

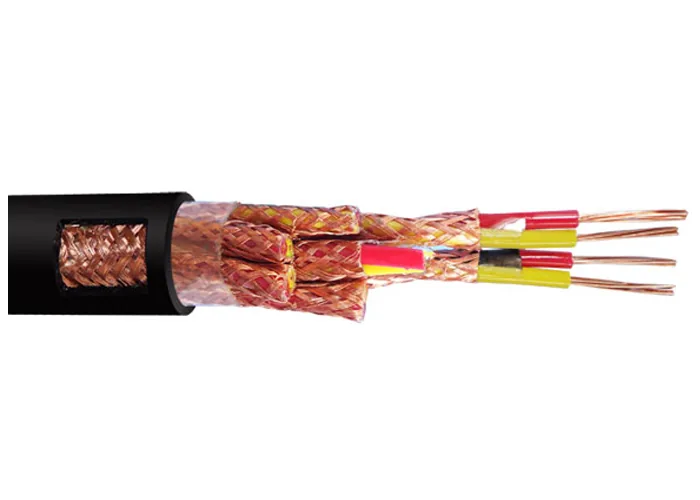

DJYPVP
LiYCY-TP (PiMF build)
Screen on each pair plus an overall screen
Individual pair screens (PiMF) where crosstalk between loops has to be controlled.
DJYVP22
LiYCY-TP with armour
Overall screen under steel tape armour
Armoured build for direct burial and mechanically exposed routes.
The two systems are not interchangeable and the parameters do not transfer. The GB side is PE-insulated at 300/500 V with a 1.5 kV test voltage; the DIN side is PVC-insulated with its own voltage classes and test voltages. German-standard dimensions and test voltages do not apply to a DJYVP designation — tell us which designation your specification names and we will quote the figures that match it.
Europe
EN 50288-7EN 50288-7
The designation depends on the insulation, screen and application — state the pair count, screen type and application and we will map it.
Cross-reference to our product families only — these pages state
which family a designation is asked for under; they do not claim
that our cable is certified to ГОСТ.
Type designations are given for cross-reference, so a specification written to IEC, GB, EN, DIN VDE, BS or GOST finds the right construction. Each designation is defined by the standard named beside it. Construction, standard edition and approval route are confirmed against your specification before an order is placed.
To quote we need
Send what you have of the following — a partial enquiry still lets us
start, and we will tell you which answers are missing.
Signal type and level — analogue loop, thermocouple, RTD, data
Number of pairs or triads, and conductors per element
Screen arrangement and drain-wire convention required
Environment and temperatures the cable sees
The standard you work to, the quantity and the drum lengths
Request a Quote
Need a quotation for Instrumentation / Signal Cables?
Send the construction, the cross-section and the quantity, and tell us which standard you work to. Our export team replies with a technical and commercial proposal.
