Armoured MV power cables

36kV 1C x 400 mm2 Cu/XLPE/AWA/PVC Cable

Conductor:Copper
Insulation:PVC/PE insulation
Armoured: Aluminum wire armoured
Voltage:36kV
Product description: Apply to shafts,water and soil,able to bear the larger positive pressure.
INQUIRY EMAIL

36kV 1C x 400 mm2 Cu/XLPE/AWA/PVC Cable

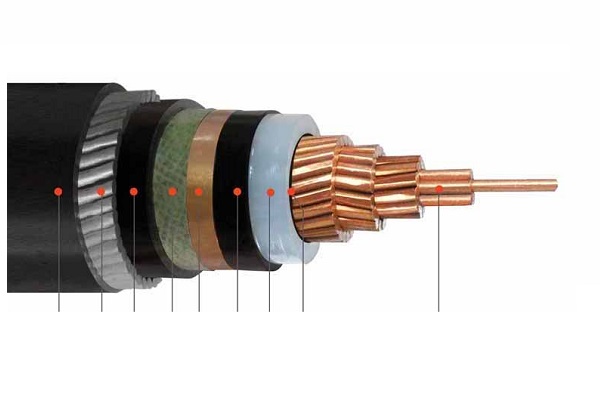

Construction

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Insulation Screen: Semi-conductor
Screen : Copper tape
Inner covering : PVC
Armored : Aluminum wire—1 core
Galvanized steel wire—3 cores
Sheath : PVC or FR-PVC type ST2 to IEC

Applications

Apply to shafts,water and soil,able to bear the larger positive pressure.

Technical data

Rated voltage: 26/35kV(36kV）
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core

Certificates

CE, RoHS, CCC, KEMA and more others at request

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Inner Sheath Thickness	Dia. Of Armor Wire	Sheath Thickness	Approx. O.D.	Approx.Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm²	pc/mm	mm	mm	mm	mm	mm	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
1 × 50	10/2.52	10.5	1.3	2.5	2.4	47	4049	0.387	91	220	215
1 × 70	14/2.52	10.5	1.3	2.5	2.5	49	4433	0.268	91	270	265
1 × 95	19/2.52	10.5	1.3	2.5	2.5	51	4809	0.193	91	330	315
1 × 120	24/2.52	10.5	1.4	2.5	2.6	52	5247	0.153	91	375	360
1 × 150	30/2.52	10.5	1.4	2.5	2.6	54	5663	0.124	91	425	400
1 × 185	37/2.52	10.5	1.4	2.5	2.7	55	6191	0.0991	91	485	455
1 × 240	48/2.52	10.5	1.5	2.5	2.8	58	7003	0.0754	91	560	525
1 × 300	61/2.52	10.5	1.5	2.5	2.9	60	7819	0.0601	91	650	595
1 × 400	61/2.97	10.5	1.6	2.5	3	64	9051	0.047	91	760	680
1 × 500	61/3.23	10.5	1.6	2.5	3.1	67	10398	0.0366	91	875	775
