Armoured MV power cables

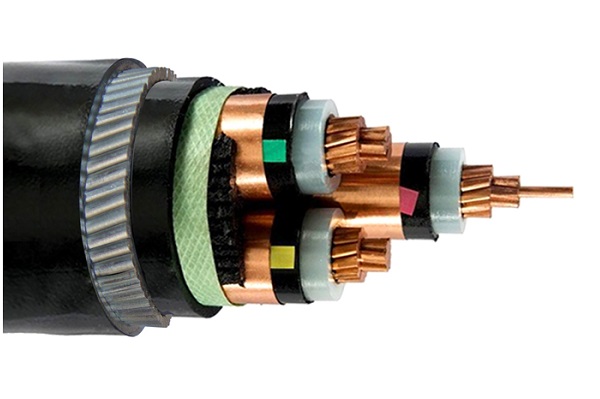

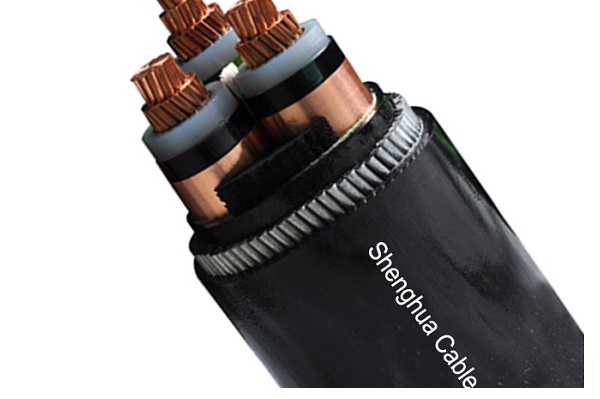

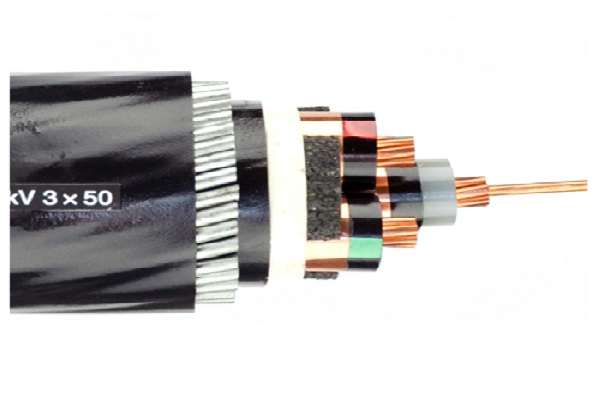

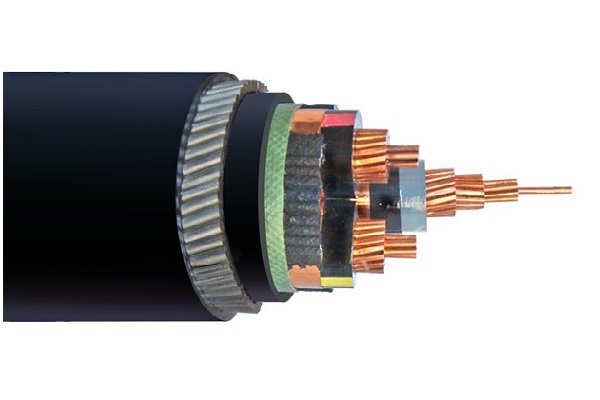

Steel wire armoured high voltage cables XLPE insulated PVC sheathed cables

Steel wire armoured high voltage cables XLPE insulated PVC sheathed cables

Conductor: copper
Insulation: XLPE
Sheath : PVC/PE
Rated voltage: 3.6kV~36kV
Product description: Apply to shafts,water and soil,able to bear the larger positive pressure.
INQUIRY EMAIL

Construction

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Insulation Screen: Semi-conductor
Screen : Copper tape
Inner covering : PVC
Armoring : Aluminum wire for 1 core
Galvanized steel wire for 3 cores
Sheath : PVC or FR-PVC type ST2 to IEC

Applications

Apply to shafts,water and soil,able to bear the larger positive pressure.

Standards

International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV32, ZR-YJV72 only)
China: GB/T 12706, (GB/T 18380-3 for ZR-YJV32, ZR-YJV72 only)
Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 26/35kV
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core
