Instrumentation Cables PE-OS-PVC BS5308

Instrumentation Cables PE-OS-PVC BS5308

Application

The unarmoured versions  are generally use for indoor installation and suitable for wet and damp areas. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in petroleum industry.

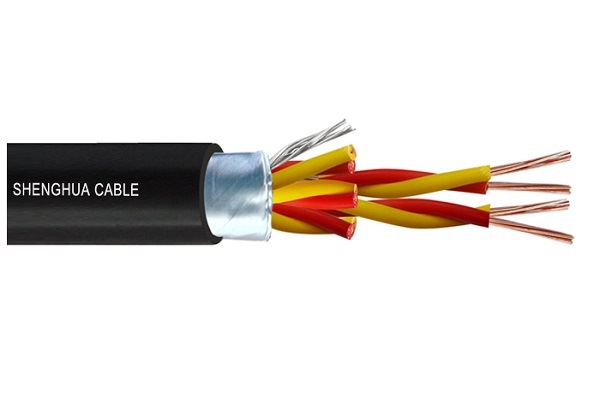

Construction

Conductor:

Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 0.5 mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm², multistranded(Class 2) to BS6360

Insulation:

PE (Polyethylene) type 03 to BS6234

Pairing:

Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Binder tape:

PETP transparent tape

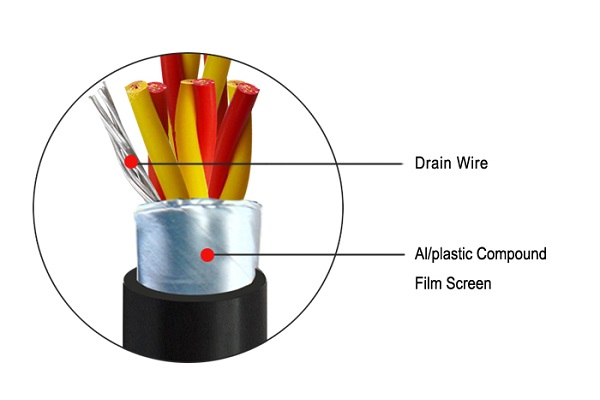

Collective screen:

Aluminium/polyester tape is applied over the laid up pairs metallic side down in
contact with tinned copper drain wire, 0.5mm²

Outer sheath:

PVC

Sheath colour:

Black or blue

Mechanical and Electrical Properties
Operating temperature: -40˚C up to + 70˚C( fixed installation)
0˚C to +50˚C(during operation )
Minimum bending radius: 5 x overall diameter
